Product Details
Place of Origin: China
Brand Name: Kunman
Certification: ISO9001:2008 quality system
Model Number: LM001
Payment & Shipping Terms
Minimum Order Quantity: 100Sq meters
Price: Negotiation
Packaging Details: Wrapping film, Strap,with strong pallets
Delivery Time: 25 -30 working days after received your payment
Payment Terms: T/T 30%deposit before producing,70%balance before delivery or western Union
Supply Ability: 5000sq meters per day
Size Of Brick: |
200*100mm,220*110mm,230*115mm,240*120mm |
Thickness: |
30mm,40mm,50mm,60mm |
Void Ratio: |
Solid |
Material: |
Clay Material |
Color: |
Red,and Available Of Other Different Colors |
Breaking Strength: |
≥4000N |
Water Absorption: |
<6% |
Process: |
Molded Pressed And Sintered |
Compressive Strength: |
≥40Mpa |
H.S Code: |
69049000 |
Size Of Brick: |
200*100mm,220*110mm,230*115mm,240*120mm |
Thickness: |
30mm,40mm,50mm,60mm |
Void Ratio: |
Solid |
Material: |
Clay Material |
Color: |
Red,and Available Of Other Different Colors |
Breaking Strength: |
≥4000N |
Water Absorption: |
<6% |
Process: |
Molded Pressed And Sintered |
Compressive Strength: |
≥40Mpa |
H.S Code: |
69049000 |

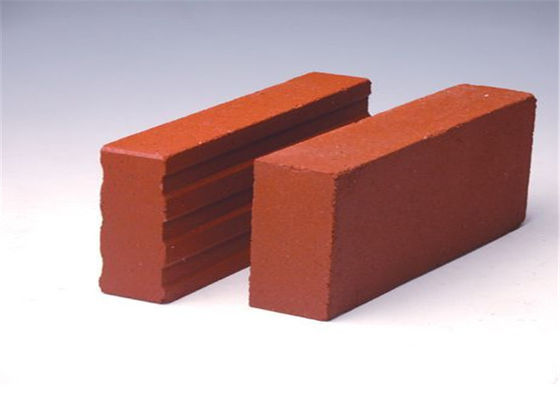

Durable high strength red clay paving brick for outside floor paving
Product Description :
| Size(L*W*T): | 200*100mm,220*110mm,230*115mm.240*120mm |
| Usage: | Outdoor flooring paving |
| Applying place: | Garden, Landscape, Sidewalk, Driving way, Plaza,etc |
| Certificate: | Passed ISO9001:2008 quality system |
| Water absorption: | 2.9~3.2% |
| Surface: | Smooth face |
| Remark: | Accept size and color customized |
Description:
* Nowdays, this kind of clay paving brick are widely used for outside road .
* This molded paving bricks are made of clay materials,fired with high temperature its solid
brick widely used for ouside road paving.
*There are different colors,textures,sizes available from our factory,and accept customized
by customer’s requirement.
Test report refer to standard Q/320282SPM001-2011:
| Size:200*100*40mm, | ||||||
| Ref. | Test item | Unit | Technical | Test results | Evalution | |
| requirement | ||||||
| 1 | Size Tolerance | Length | mm | +/-2.0 | -0.76～0.14 | Qualified |
| Width | mm | +/-1.0 | -0.36～0.20 | |||
| 2 | Water Absorption | Average | - | ≤6 | 3 | Qualified |
| Single piece | - | ≤6.5 | 2.9～3.2 | |||
| 3 | Break strength | Average | N | ≥4000 | 4876 | Qualified |
| Single piece | N | ≥3800 | 4548～5010 | |||
| 4 | Compressive strength | Average | Mpa | ≥40 | 42 |
Qualified
|
| Single piece | Mpa | ≥35 | 37~46 |
|||
Packing details:
| Size(mm) | Thickness(mm) | Pcs/sqm | Weight/sqm for different thickness | |||||
| 200*100 | 30, 40, 50, 60 | 50pcs | 60kgs,80kgs,100kgs,120kgs | |||||
| 220*110 | 30, 40, 50, 60 | 40pcs | 60kgs,80kgs,100kgs,120kgs | |||||
| 230*115 | 30, 40, 50, 60 | 37pcs | 60kgs,80kgs,100kgs,120kgs | |||||
| 240*120 | 30, 40, 50, 60 | 34pcs | 60kgs,80kgs,100kgs,120kgs | |||||
Product process:
* Clay brick professional manufacturer in China , all products have to be through strict inspection
before delivery, we not only have to ensure the quality in business but also the credibility in our
market.
* Our aim is to meet your requirement and make large market to all over the world .This whole
producing process is for you better know us .
Great Advantage:
Our clay wall bricks sintered with very high temperature with no impurities, non-radioactive,its green project products to design your home ,buildings.
1. Wear resistance;
2. Anti-freeze;
3. Low water absorption;
4. Eco-friendly;
5. Easy to maintain;
6. High strength for long life;
7. Strong acid and alkali resistance;
8. No color fade for long time;
9. Fast delivery,sometimes stock available.
